SQL Chart Builder

The plugin creates beautiful charts based on your SQL queries, then you can use those charts in any part of your website. You can use both native wp and non-wp mysql tables in your queries. 11 chart types: Pie, Doughnut, Polar Area, Radar, Line, Area, Stepped Line, Bar, Horizontal Bar, Stacked Bar, Scatter What's new in 3.0

• A completely redesigned chart builder. No more "nerd-only" settings page: a clean, tabbed UI walks you through Chart & Data → Dynamic Filters → Style → Advanced.
• Visual chart type picker with built-in guides. Every chart type shows a short "when to use it" guide plus a working example query you can insert with one click.
• Live SQL autocomplete. Start typing and the editor suggests SQL keywords (type "S" — get SELECT), your real database table names and real column names. Type tablename. to see that table's columns. Press Ctrl+Space for suggestions at any time.
• Click-to-build query toolbar. SELECT / COUNT(*) / FROM / WHERE / GROUP BY / ORDER BY / LIMIT buttons plus "Insert table", "Insert column" and "Insert dynamic tag" dropdowns filled with your actual database schema — build a best-practice query without typing a single word.
• No-code input filters. Add date/number/text filters as simple rows (tag, type, label, default) — the tag dropdown suggests {tags} already used in your query and columns from its WHERE part. No more memorizing the ~ / | syntax (a raw editor is still available for pros). One click inserts the {tag} into your query.
• Dropdown column mapping. The X/Y axis fields are dropdowns filled with the columns detected in your SQL query — no more guessing column names.
• Color pickers instead of typing hex codes, and a fixed professional default palette instead of random colors.
• Latest Chart.js v4, bundled inside the plugin — no third-party CDN calls, GDPR-friendly.
• 4 new chart types: Radar, Stepped Line, Stacked Bar and Scatter.
• Better front-end design: modern table view, restyled filter form and datepicker.
• Full legacy support: charts created with 2.x keep working unchanged. Deprecated Google-Chart types are automatically mapped to modern equivalents when you open/save the chart.

How to use

1. Go to Dashboard → My SQL Charts → Add New and give any name to your report.
2. Pick a chart type — read the short guide shown under the type cards, or click "Use this example" to start from a working query.
3. Build your SQL query with the toolbar buttons and autocomplete (real table and column names are suggested), then map the X and Y columns.
4. You can use multiple SQL queries too — just split them with the ";" sign to get comparison charts. You can also pass shortcode arguments into the query: with "select * from wp_posts where ID>{arg1}" the shortcode [gvn_schart_2 id="2" arg1="11"] passes the value in.

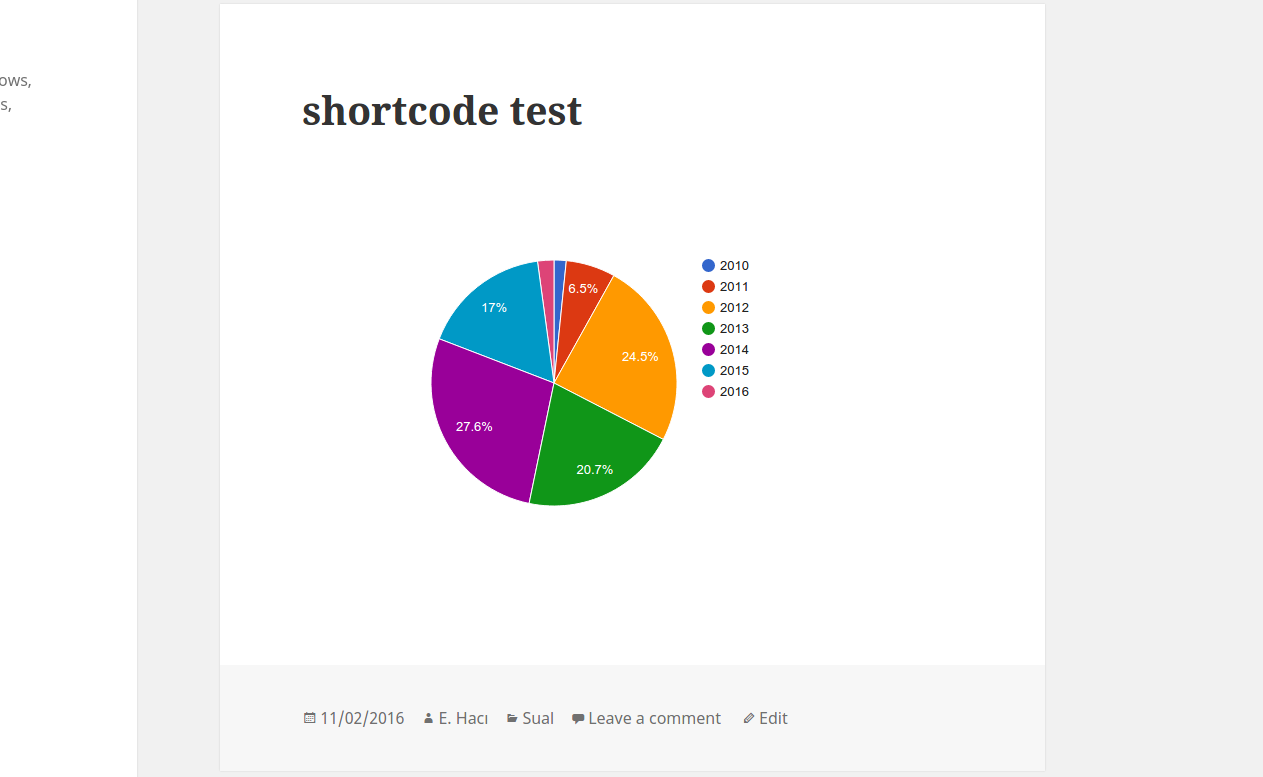

5. After Publish/Update you will see the shortcode below the builder. Use it anywhere on your website: pages, posts, widgets, or the "My SQL Charts" Gutenberg block.
6. Check "Show table-view data below the graph" to also render the data as a styled table.
7. In the Input Filters tab, add filters by clicking "+ Add filter" — each one becomes an input (with a datepicker for date types) above the chart at the front-end.

Chart type mini-guide

• Pie / Doughnut — how a total splits into a few parts. One query: label column + numeric column.

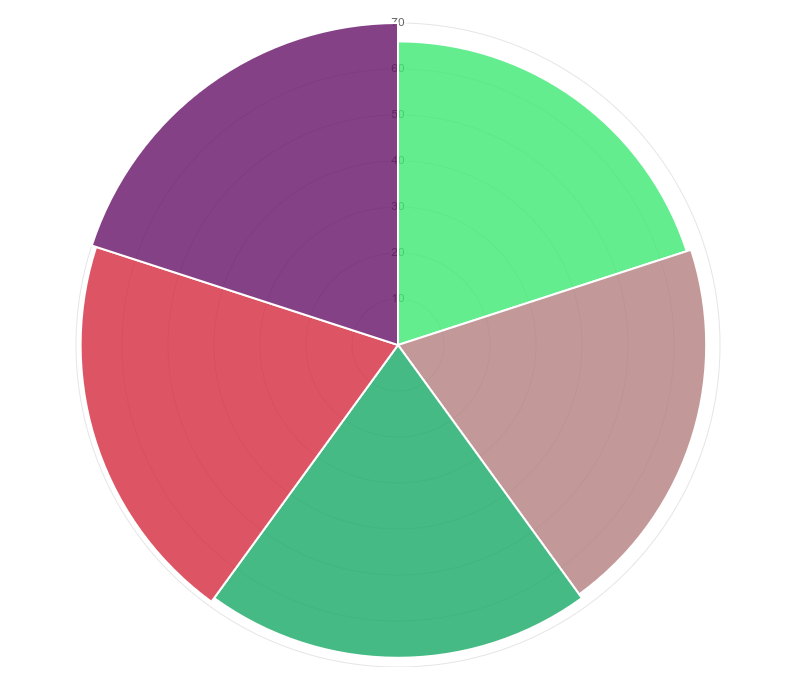

• Polar Area — like a pie, but the value controls the radius; great for cyclic data (months, weekdays).
• Radar — compare one or more series across categories arranged in a circle (profiles, ratings).
• Line — trends over time; add more ";"-separated queries for comparison lines.
• Area — a line with the region filled; emphasizes volume.
• Stepped Line — values that change at discrete moments (prices, stock levels).
• Bar / Horizontal Bar — compare categories; horizontal is best for long labels.
• Stacked Bar — how each category total is composed; each ";"-separated query becomes one segment.
• Scatter — correlation between two numeric columns (both X and Y must be numeric).

Input filters (dynamic variables) Use the visual rows in the Input Filters tab, or the raw format: variable_name~default_value~variable_label~variable_type | variable_name~default_value~variable_label~variable_type

• variable_name - any single name you want.
• default_value - default value when no variable is chosen by the user
• variable_label - label visible on the form above the chart
• variable_type - number, text or date
• ~ separates variable elements, | separates variables

Example: with the filters "limit_tag~10~Count~number | post_date_tag~2010-07-05~Date Published~date" you can use "select * from wp_posts where post_date<{post_date_tag} limit {limit_tag}" as the SQL code — the plugin renders the corresponding inputs above the chart automatically. Supported built-in dynamic tags: {current_user_id}, {current_user_login}, {current_user_email}, {current_user_display_name}. Caching Use [gvn_schart_2_cached id="1" expire="3600"] to cache the rendered chart in a transient. Add &force_sql_cache_reload=1 to the URL to bypass it once (e.g. right after upgrading). 站点 https://guaven.com/my-sql-charts/ 程序文档 https://guaven.com/my-sql-charts/#docs Bug Submission and Forum Support Contact Page Please Vote if you liked our plugin Your votes really help us. Thanks.

3.0.0

• NEW: Completely redesigned admin chart builder — tabbed UI (Chart & Data / Dynamic Filters / Style / Advanced) with visual chart-type cards.
• NEW: Live SQL autocomplete — suggests SQL keywords, real table names and real column names from your database while you type (Ctrl+Space to trigger manually).
• NEW: Click-to-build query toolbar — SELECT/FROM/WHERE/GROUP BY/ORDER BY/LIMIT buttons + insert-table/insert-column/insert-tag dropdowns based on the live DB schema.
• NEW: No-code Input Filters builder — add filters as visual rows; tag names are suggested from your query, and {tags} are inserted with one click (raw format still supported).
• NEW: X/Y column mapping via dropdowns auto-filled from the columns detected in your SQL query.
• NEW: Fixed professional default color palette (Tableau 10) replaces random colors; override via the guaven_sqlcharts_default_palette filter.
• IMPROVED: Proper "Chart" admin labels and menu icon for the chart post type (no more generic "Post" wording).
• NEW: Built-in per-chart-type usage guides with one-click example queries.
• NEW: 4 chart types added — Radar, Stepped Line, Stacked Bar, Scatter (11 types total).
• NEW: Color pickers for chart colors.
• IMPROVED: Upgraded to the latest Chart.js v4, bundled locally in the plugin (no third-party URLs).
• IMPROVED: Modern front-end styling for the table view, dynamic filter form and datepicker.
• IMPROVED: Shortcode width/height attributes now work as documented; charts are responsive by default.
• IMPROVED: Forbidden-SQL check is now case-insensitive with word-boundary matching.
• LEGACY: Old 2.x charts work unchanged; deprecated Google-Chart types auto-migrate to modern equivalents on edit/save; the [gvn_schart] legacy shortcode is now served by the modern renderer.
• REMOVED: Google Charts options (deprecated since 2.x) and leftover internal debug code.

2.3.8

• Security fix: Patched SQL injection vulnerability in Dynamic Filter Variables feature. User-supplied GET parameters are now properly sanitized using sanitize_text_field() and esc_sql(), and the () bypass loophole has been removed for user input. Credits: WPScan team for responsible disclosure.

2.3.7

• Fixed small security issue
• More escape/sanitize related security improvements

2.3.5

• 2 bug fixes on chart rendering X axis values

2.3.4

• Backend improvements on existing features

2.3.3

• Fixed: PHP warning issue

2.3.2

• Added: Enable/disable Stackedness of bar charts

2.3.1

• Added: Enable/disable Legend section in Charts

2.3.0

• Added: One new chart - Polar Area
• Added: New small feature - Round Y Axis tick values
• Improvement: Hashing DB Remote password

2.2.2

• Added: Custom color support for PIE charts
• Added: Insert custom chart parameters via Shortcode attributes

2.2.1

• Small improvements

2.2.0

• Added width-height support
• Added "Zero point" to line chart
• Bugfixes

2.1.2

• New feature: Remote Database Connection
• Setting custom & fixed colors for charts
• Small improvement in table-view component

2.1.1

• Fixed small bug in Area Charts
• Chart library has been updated to the latest version

2.1.0

• Dynamic filters added: You can use dynamic date/number/text filters at frontend.
• Table-view support added.

2.0.4 Now you can add custom arguments to the SQL query. 2.0.0

• New non-Google Local Charts added.
• Use multiple mysql queries in one graph.

1.0.0

• Uploaded to Wordpress.org

1.0.2

• Little fixes

1.0.5

• Added WP 4.7 compatibility
• Fixed "multiple charts in one page" issue.
