TeamGraph – Org Chart & Team Directory
| 开发者 | 23bitstudio |
|---|---|
| 更新时间 | 2026年11月8日 07:08 |
| PHP版本: | 8.0 及以上 |
| WordPress版本: | 7.1 |
| 版权: | GPLv2 or later |
| 版权网址: | 版权信息 |
详情介绍:
[teamgraph] shortcode):

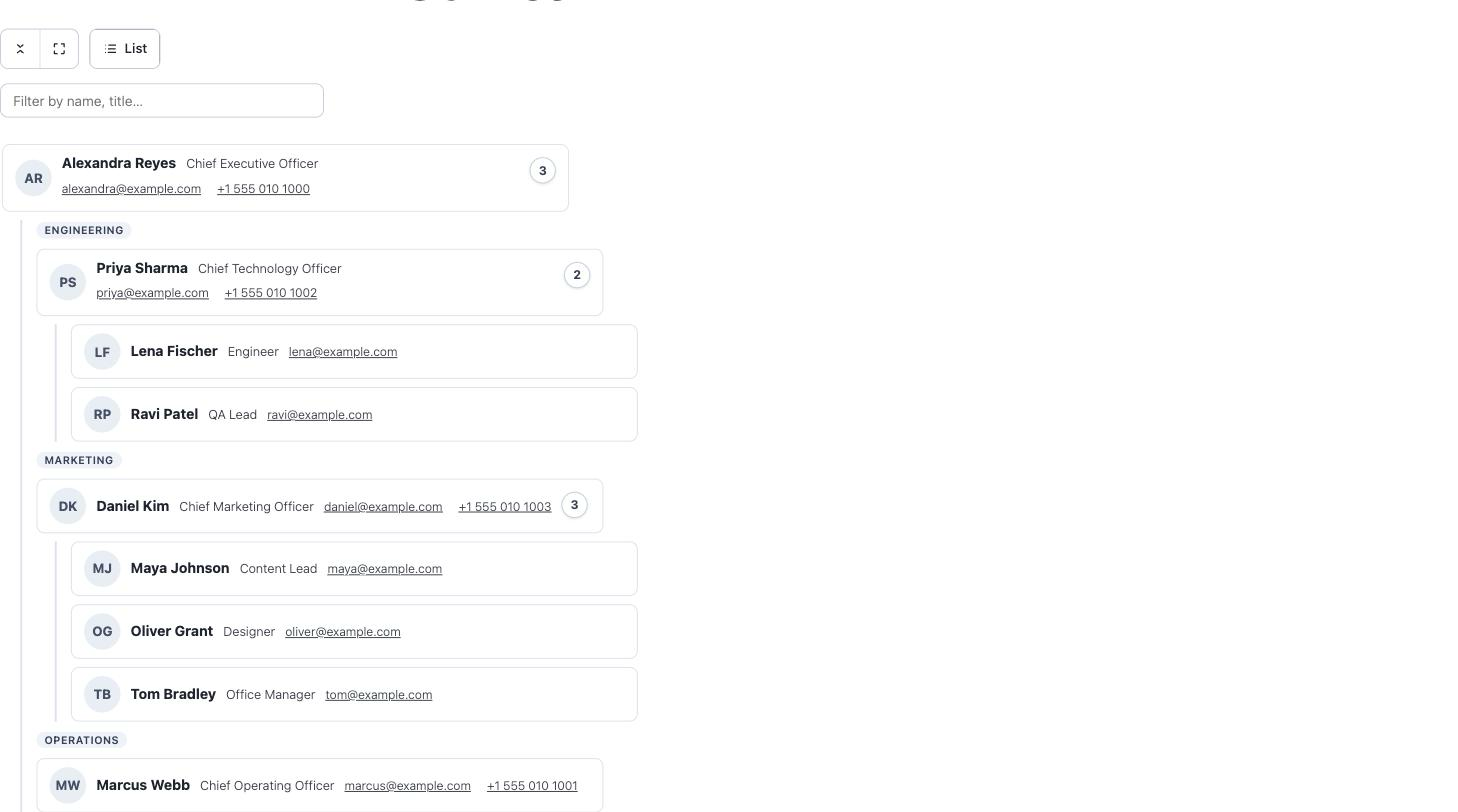

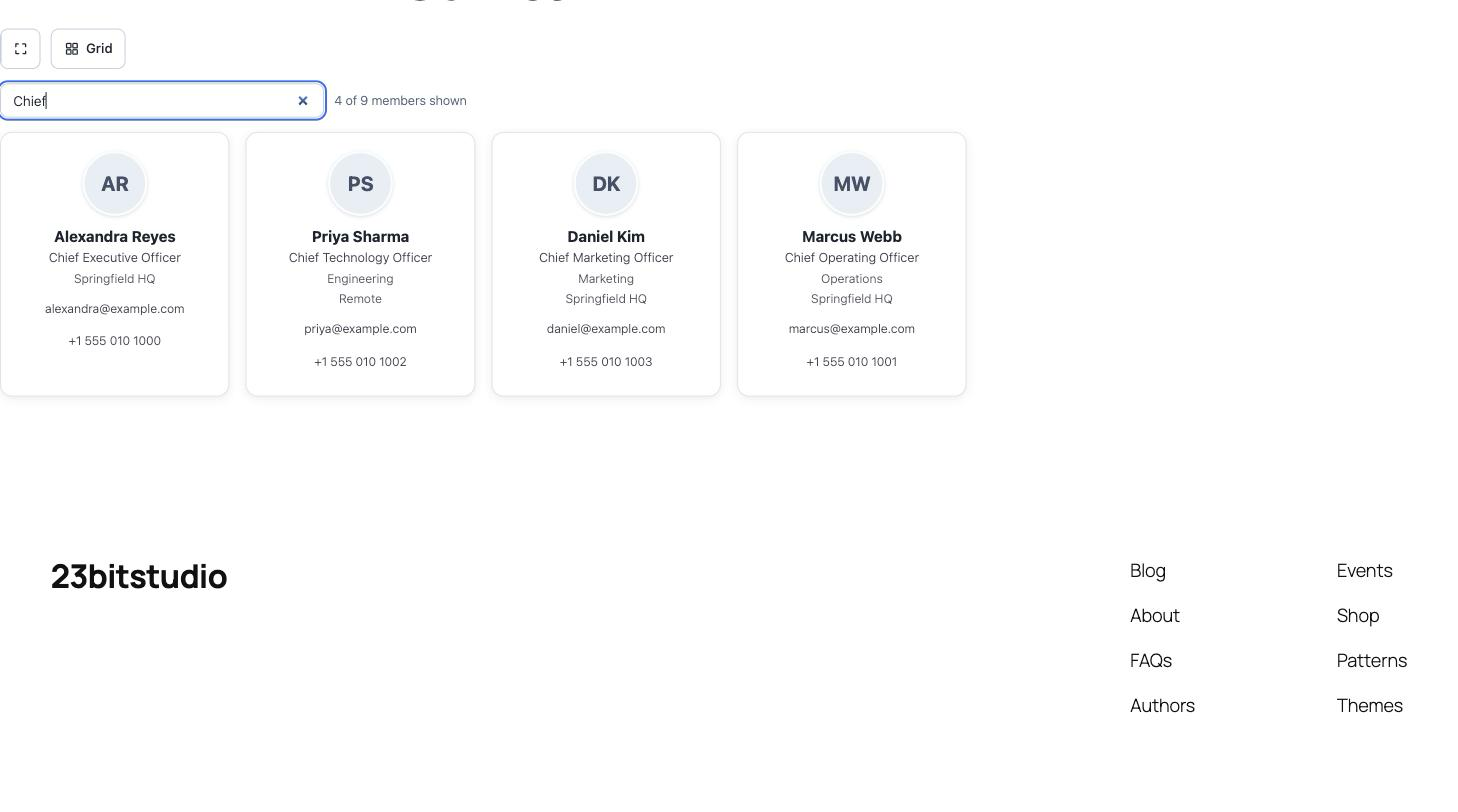

- Three views: org chart with connector lines, card grid, directory list
- Member cards with photo, name, job title, email, phone, and profile link
- Filter any view to one department or location, or chart a single branch from any member
- Collapse/expand branches (chart and list) and a live type-to-filter box (grid and list)
- Department pills appear automatically where a branch's assignment changes
- Color guides style branches with your brand colors, inherited down the tree
- Prints cleanly, fully expanded
- No jQuery and no front-end framework — one small script and stylesheet, loaded only where a chart appears

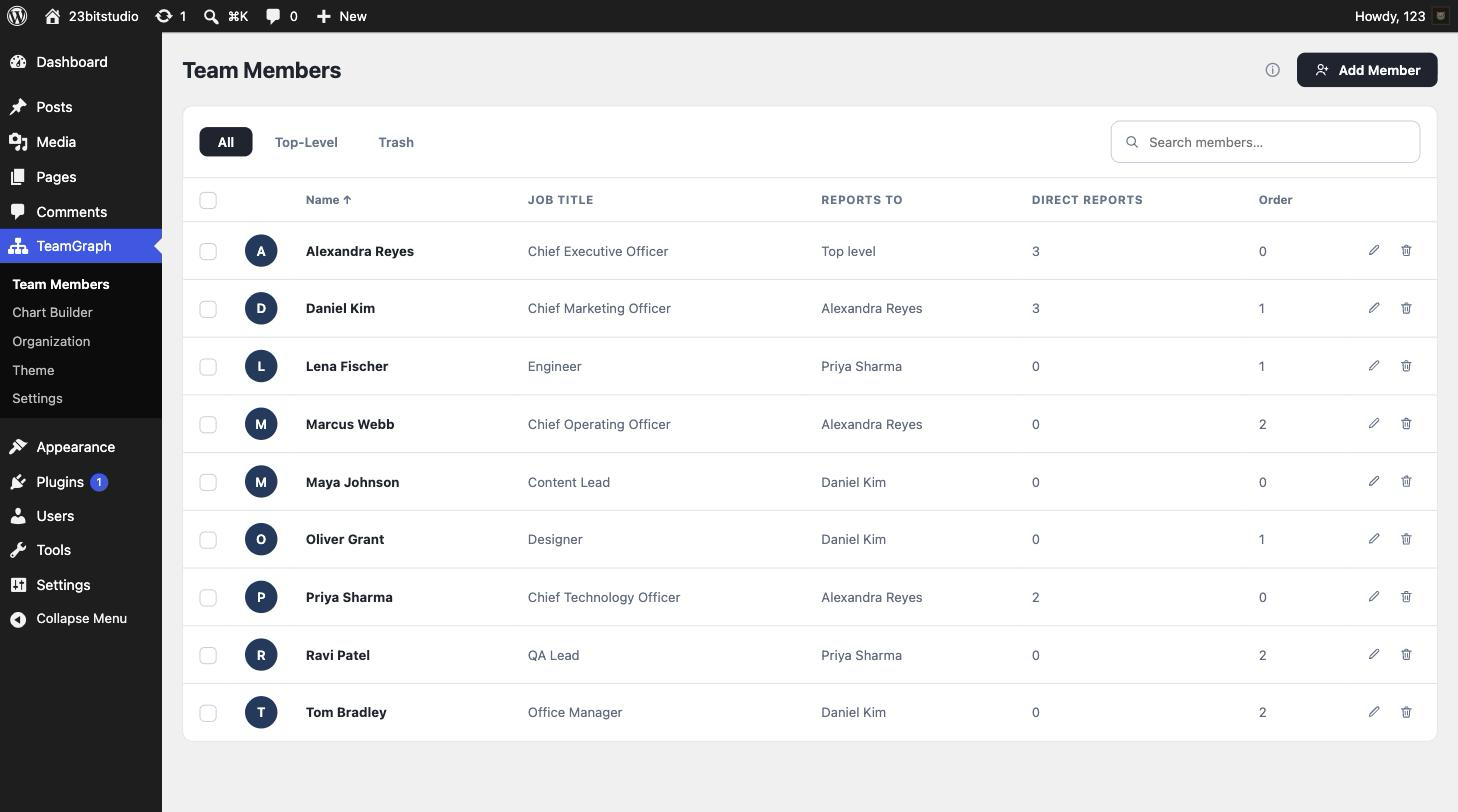

- Team Members: instant search, sortable columns, pagination, bulk actions, a Trash tab to restore deleted members or remove them permanently, and a one-click copy of the shortcode

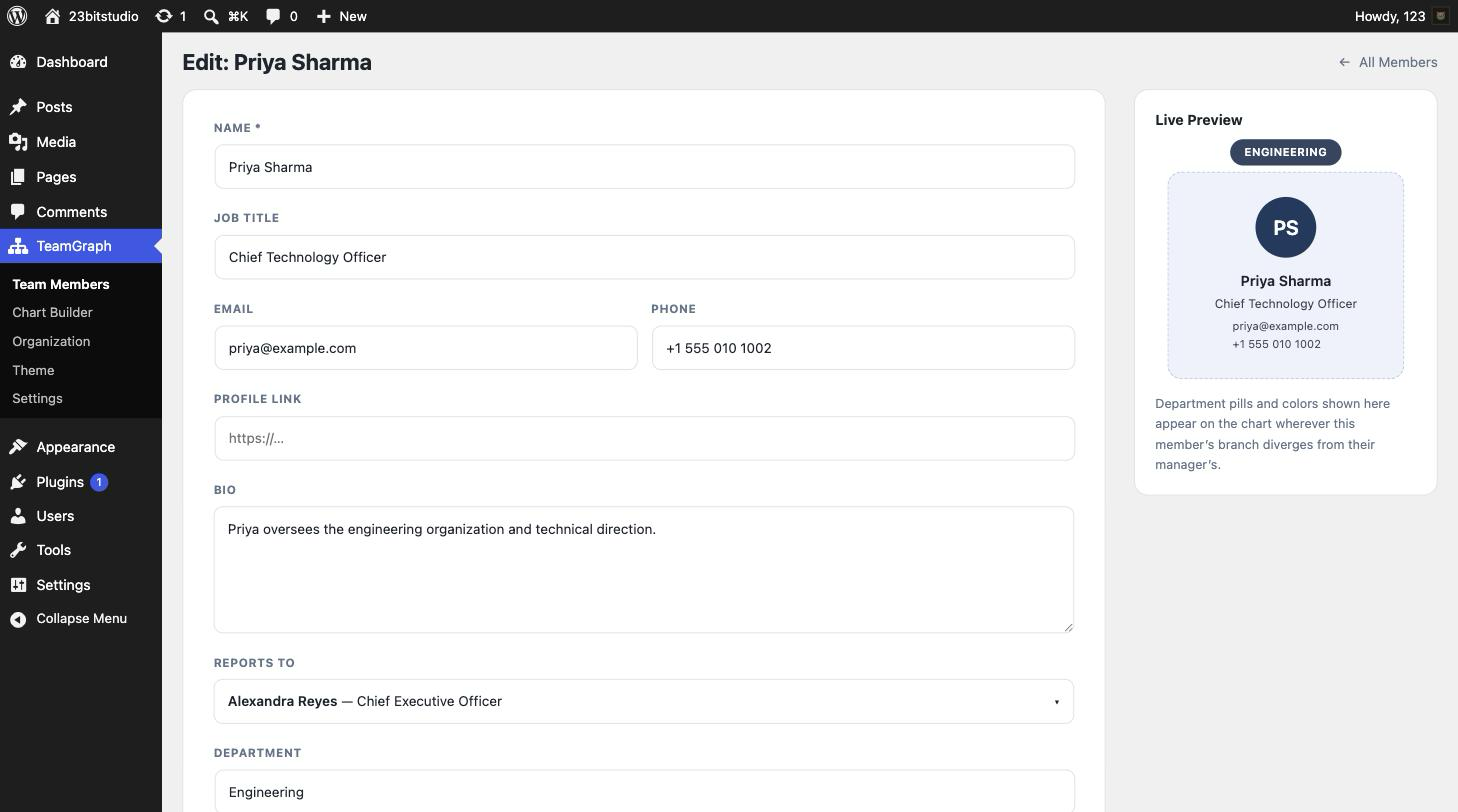

- Add/Edit Member with a biography, department, location, photo, live card preview, and a searchable manager picker that never offers a choice that would create a reporting cycle

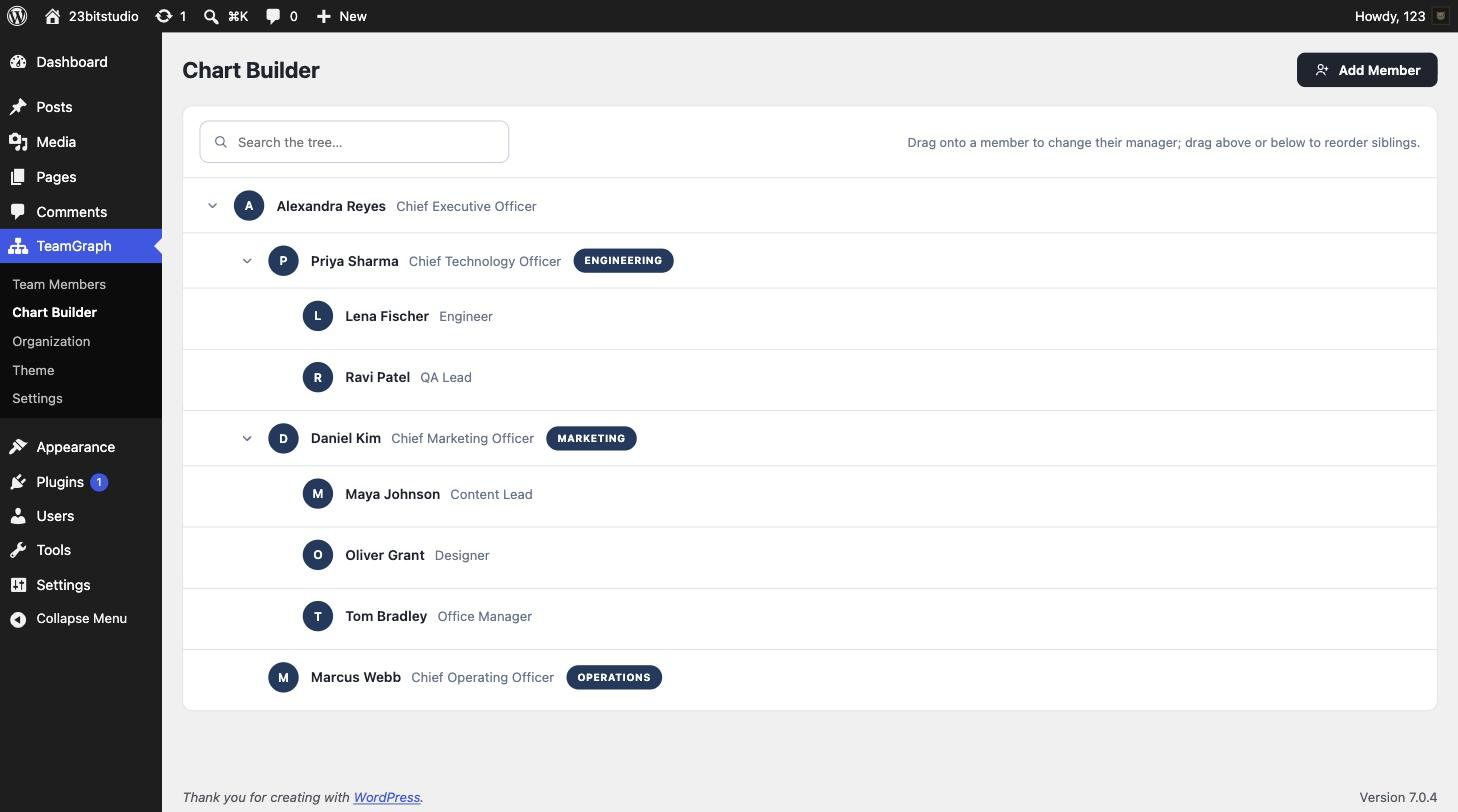

- Chart Builder: drag onto a member to change their manager, drag above/below to reorder, live tree search, slide-in editing drawer
- Organization: manage your departments and locations in one place

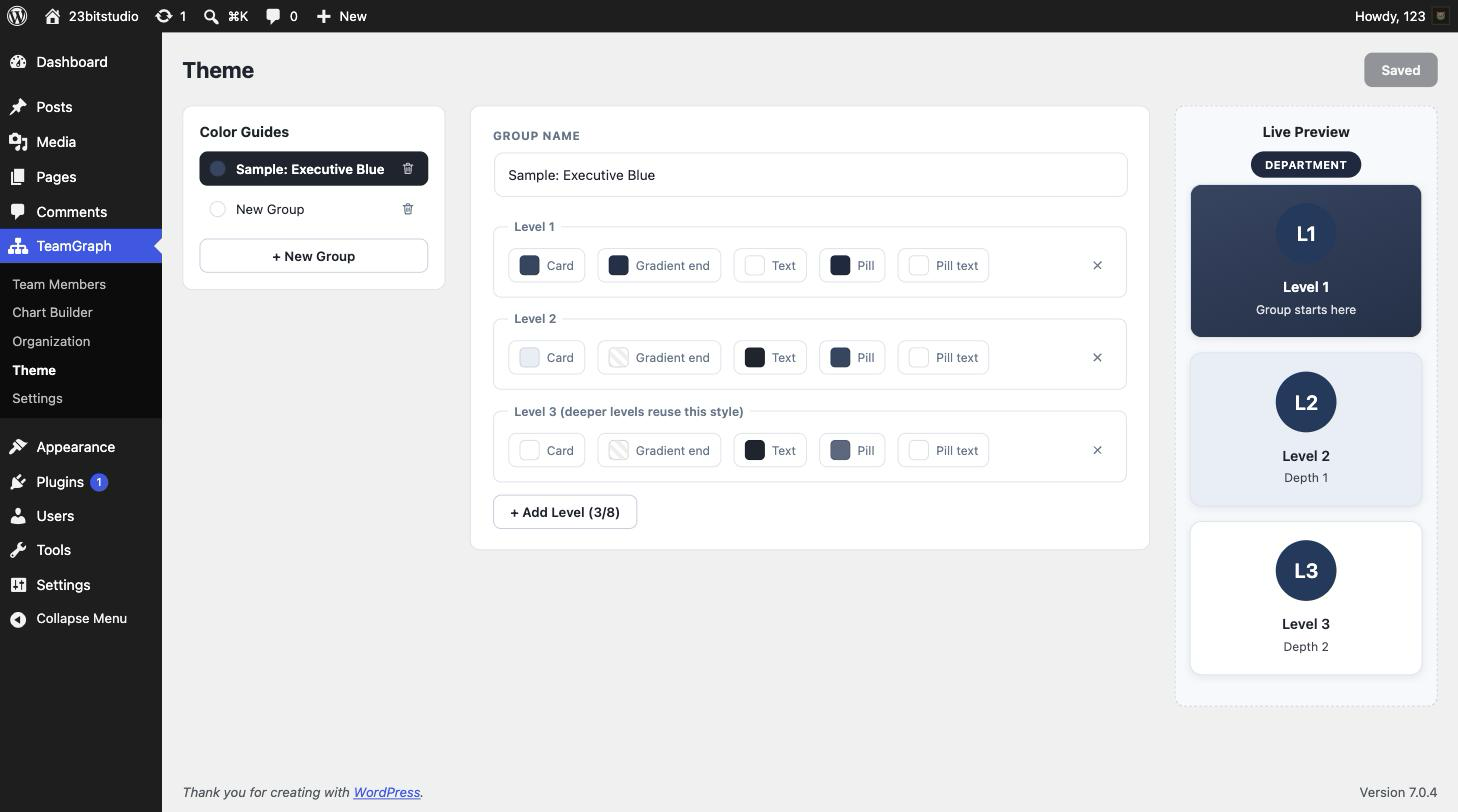

- Theme: color guides with up to eight levels and a live card preview — with live WCAG contrast warnings while you pick colors
- Settings: sample data you can load and remove with one click, CSV import/export with a downloadable template, a built-in Docs guide, and uninstall data controls
- WordPress.org update status and links to native dashboard updates, reviews, feedback, and support in Settings
安装:
- Upload the
teamgraphfolder to/wp-content/plugins/, or install the plugin through the Plugins screen in WordPress. - Activate the plugin through the "Plugins" screen.
- Open TeamGraph in the admin menu. Add team members (or load the sample organization from TeamGraph → Settings to explore), then arrange the reporting hierarchy in the Chart Builder.
- Add the chart to any page with the TeamGraph Chart block, or the
[teamgraph]shortcode.
屏幕截图:
常见问题:
How do I show the chart on a page?
Insert the TeamGraph Chart block, or add the [teamgraph] shortcode. Both accept a view (tree, grid, or list), an optional starting member, and department/location filters: [teamgraph view="grid" department="Marketing"] or [teamgraph root="123"]. The shortcode accepts a department/location by name or slug.
Is the chart accessible?
Yes — that's the point of TeamGraph. Every view is semantic HTML: the org chart is a nested list styled with CSS, so screen readers announce the hierarchy natively. Collapse toggles are real buttons with proper ARIA state, keyboard focus is visible on every control, headshots use your media library alt text, the default colors meet WCAG AA, and the chart works completely without JavaScript.
Does TeamGraph send any data anywhere?
TeamGraph makes no external requests and sends no feedback automatically. Member data and review-reminder preferences stay in your WordPress database. WordPress itself checks WordPress.org for plugin updates through its standard update system. Optional review/support links open WordPress.org; Send feedback opens an email to hello@23bitstudio.com, which you can edit and send yourself.
How do I update TeamGraph?
Use Dashboard → Updates or Plugins, just like other WordPress.org plugins. TeamGraph → Settings → General shows the installed version and the status from WordPress' last update check, with a link to check again. Auto-updates remain under your control on the Plugins screen.
Can I leave a review or send feedback?
Yes. TeamGraph → Settings → General always has links to leave an honest review on WordPress.org, email feedback, and get support. Administrators may also see a small prompt on TeamGraph screens after a week of use and after adding a member of their own. The prompt can be postponed for 30 days or dismissed permanently for that user on that site. It does not appear on the public website.
What happens when I delete a manager?
Their direct reports automatically move up to the deleted member's own manager, so the chart never breaks. The member goes to the trash and can be restored.
Can a person link to their profile page?
Yes — each member has an optional profile link, and the name on their card links to it.
Does it work with my theme?
Yes. The chart renders inside its own reset container, so theme typography and list styles can't distort the layout or the connector lines. Wide charts scroll inside the container — they never make your page scroll sideways.
Will uninstalling delete my team?
Only if you ask it to. By default all data is kept; enable "Delete all data on uninstall" under TeamGraph → Settings if you want removal to be complete.
更新日志:
- Added a Settings panel showing the installed version and WordPress.org update status, with links to WordPress' native update and auto-update controls.
- Added permanent review, feedback, and support links in Settings.
- Added an optional, delayed review/feedback prompt on TeamGraph admin screens, with per-user 30-day snooze and permanent dismissal.
- Initial release: members with bios and photos, departments, locations, color guides, drag-and-drop Chart Builder, three semantic front-end views (chart, grid, list) with department/location filtering, Gutenberg block and shortcode, sample data, CSV import/export, uninstall controls.
